Nissan Diagnostics on Windows and Android

Go to page : 1, 2, 3  Next

View previous topic View next topic Go down  Message [Page 1 of 3]

1 Nissan Diagnostics on Windows and Android on 8th March 2016, 12:57 am

mreguest

avatar
Hello,

So I have been using these diagnosis things for years:

PLMS = $95+shipping+import tax+VAT from Australia. (I guess £65ish)

http://www.plmsdevelopments.com/consult_if.shtml

great bit of kit, super stable, and lots of great software (free and paid for) for windows through USB and/or bluetooth. And electronics is a bit of a hobby of mine so i get how to make stuff like this...

I found this product on a 300ZX forum which is basically the same circuit but with a bluetooth transmitter embedded rather than a usb interface.

$90+shipping+import tax+VAT from Australia. (£60ish)

http://www.trackelectronics.com.au/consultbt

I did a lot of research and tinkering and have been making and selling a few of these 'box of tricks'...



[url=https://flic.kr/p/DUsc36]

[url=https://flic.kr/p/Czq5hY]

[url=https://flic.kr/p/DubBGy]

[url=https://flic.kr/p/CzhMrX]


I have simply taken the principles from the PLMS and Track boxes and combined them in a simple to use windows/android USB and Bluetooth compatible box for £50+post, I made 10 and have a couple left...

If you see any other products claiming to do Nissan OBD2 and OBD1 this is not possible. OBD1 is for GTIR and other 90's nissans with grey socket in the fuse box. OBD2 is for modern cars and is a completely different language and socket shape.

OBD1 for Nissan source code was released to the public a long time ago. It was during a period of time when there was no standardisation, and so OBD1 for others cars is not the same. Other manufacturer's charged daft money to hook up a laptop and kept their code secret.

OBD2 was standardised protocol to comply with type approval in USA, all petrol was from year 2001 and diesel 2004. Europe a little later to follow but this is why you can get OBD2 scanners on ebay for £5. They are very good and I have used them on various cars, but defo not work on OBD1 cars.

Some later 90's Nissans had a OBD2 ECU with OBD1 grey socket. Don't be mistaken for the scanners that work on these cars.


This is a half an hour video explaining a bunch of stuff about my box. Windows chat for first 20 minutes followed by Android. Sorry the video is shite quality, quite boring etc, took me half an hour to film this and uploaded it to find it is sideways Sad

https://www.youtube.com/watch?v=wpzqqDYATNw

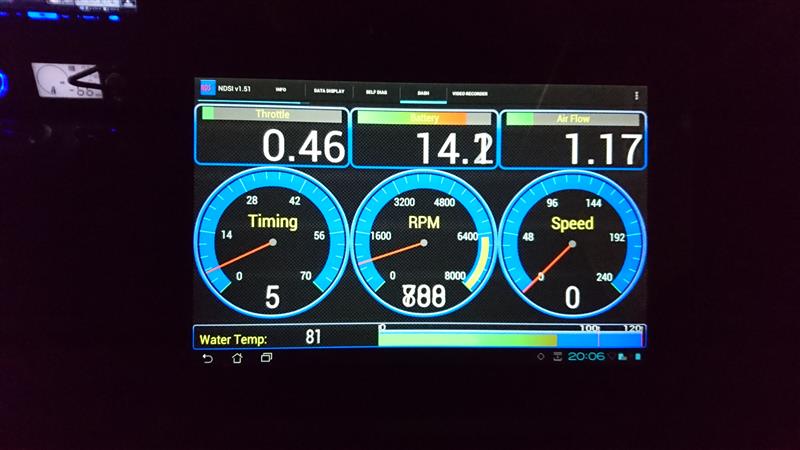

This video is from a lad using one of my boxes testing a GTIR with Nistune ECU, bluetooth android:
https://www.youtube.com/watch?v=pRV3pHJnLDU

My car is off the road for probably another 2 months. Gearbox rebuild etc. When it is back on the road I will do a bunch of videos doing diagnosis, error codes, car set up, timing, TPS etc. All live unpluging stuff so you can see what happens.

I can make bluetooth only, or USB only, or both USB bluetooth combined.

I can advise/provide various different software, some for free and some paid for. I must at this point say I have NO money link with any software developers and will not take money from people for software, just send you a link. I will write about the software choices another day.

If your windows laptop has bluetooth it will work.
or
If your Android phone/tablet has OTG USB it will work.
or
If your Android phone/tablet has Bluetooth it will work.
(any or all of the above will work)

If your GTIR has standard ECU this will work.
If your GTIR has Nistune this will work.

If your GTIR has any other piggy back ECU, and it can do diagnosis through the grey socket in your fuse box then it 'SHOULD' work but I have not tested any others. (would be happy to take back any boxes that don't work because of strange piggy ECU)

If your GTIR has standalone ECUs like Apexi Powerfc etc, and the data transfer is not through the grey socket in fuse box, then I don't think it will work as they have trailing usb cables and handcommanders etc.

It took me a very long time to make these 10 boxes and i'm not sure if I will make any more. I made them for fun and at £50 make chuff all money.

As said I can make bluetooth only, or USB only, or both USB bluetooth combined. Price wise i'm going to have to review this. I'm confident they are as good as the PMS and track ones put together but for the same money as one.

Gut feeling is it would be worth my effort to doing the following if there is much interest, approximately:

USB only at £40+post.
Bluetooth only at £45+post.
USB & Bluetooth at £60+post.

I'm writing this wondering how much interest there would be in me making some more?

Feel free to ask questions and make suggestions!

Cheers
Adam

splmum

avatar
g'day Adam

I'll take one please,

USB & Bluetooth at £60+post to Sydney Australia.

Can you work out post and let me know and also your payment addy.

thanks

gaz

Mr B

avatar
gtir technician
gtir technician
That's a fantastic bit of home electronic tinkering.
This is a great tool for anyone with standard based ecu & well worth the money .
Will watch video later thumbsup

gtir_woody

avatar
moderator
moderator
This is amazing, great work thumbsup

5 Re: Nissan Diagnostics on Windows and Android on 8th March 2016, 11:04 am

GTI-R US

avatar
Management
Management
Hiye Adam
Very good bit of kit you have come up with there fella so very well done to you, not seen vid yet thumbsup

First off would (for other members benefit) like to say that Adam is a trusted guy and I will personally vouch for anything he is advertising although this is first ive heard of this kit.

Give me a bell please Adam or drop me a pm as would be able to sort something out regarding the sale of these units via our websites if you wish as theres still a fair amount of sheds using the obd ports and as you know our website gets thousands of hits, so may be good for your business too in shifting far larger quantities.

Anyway that aside I will deffo take some off you so see how your numbers tally up on here fella but I will make up any shortfall if theres not enough call from members under a group buy or how ever you want to play it.
Will take units with Bluetooth and usb applications please

oh and rep point given for your work in coming up with such a good idea when many people now just cant be bothered or produce nothing more than useless shite lol

Would like to add ''as Adam rightly says'' this will not work with any aftermarket stand alone ecu such as Apexi power fc, Motec, Autech, link, Emerald etc as they have different parameter readings therefore do not utilise the obd com port.

Ecu's with piggybacks such as Nistune, Dastek unichip, Greddy emanage, and generically chipped ecu's such as Mines, Blitz etc are all utilising the Ecu main board for monitoring (unless disabled manually) so all sensors should still work via the stock obd diagnostic port.


_________________
                                GTI-R-US.CO.UK
                                    Nissan Pulsar Gti-R Specialists
                                            'In association with'
                           Torque Of The South Motorsport
             Dyno Developments 4wd rolling road & Performance Tuning Centre
                                          'Services provided'
Wheelchair conversions, Forged engine rebuilds, Dyno power runs & Ecu mapping, Dyno diagnostics, Sonic injector cleaning, Performance upgrades,
Full Race setup's, Servicing, Mot's, Restorations, conversions, fabrication, Worlds largest stockist of quality used parts for Gtir
http://www.gti-r-us.co.uk www.force500.com

6 Re: Nissan Diagnostics on Windows and Android on 8th March 2016, 12:32 pm

FPSChris

avatar
I'll have a USB + BT one Very Happy

https://soundcloud.com/fpschris

buckym120

avatar
Only last month i bought a bluetooth adaptor but not been able to get it to work and havent been arsed to spend time to get it working.

It these are compatible with both my tablet (samsung tab 2) and laptop (windows Cool actually just seen your testing on win 10 so ill be fine. Then ill put my name down for a bluetooth and usb one

nomad

avatar
Admin
Admin
1. Splmum usb+bt  ×1
2.. fpschris usb+bt  ×1
3. Buckym120  usb+bt ×1
4. Bob ....... usb+bt  (amount depending)
5. Johnny gtir usb+bt x1


_________________
"Official post whore" and all round superhero....

Ajay.


1. Splmum usb+bt  ×1
2.. fpschris usb+bt  ×1
3. Buckym120  usb+bt ×1
4. Bob ....... usb+bt  (amount depending)
5. Johnny gtir usb+bt x1
6. Ajay usb+bt x1

10 Re: Nissan Diagnostics on Windows and Android on 8th March 2016, 9:58 pm

mreguest

avatar
@GTI-R US wrote:Hiye Adam
Very good bit of kit you have come up with there fella so very well done to you, not seen vid yet thumbsup

First off would (for other members benefit) like to say that Adam is a trusted guy and I will personally vouch for anything he is advertising although this is first ive heard of this kit.

Give me a bell please Adam or drop me a pm as would be able to sort something out regarding the sale of these units via our websites if you wish as theres still a fair amount of sheds using the obd ports and as you know our website gets thousands of hits, so may be good for your business too in shifting far larger quantities.

Anyway that aside I will deffo take some off you so see how your numbers tally up on here fella but I will make up any shortfall if theres not enough call from members under a group buy or how ever you want to play it.
Will take units with Bluetooth and usb applications please

oh and rep point given for your work in coming up with such a good idea when many people now just cant be bothered or produce nothing more than useless shite lol

Would like to add ''as Adam rightly says'' this will not work with any aftermarket stand alone ecu such as Apexi power fc, Motec, Autech, link, Emerald etc as they have different parameter readings therefore do not utilise the obd com port.

Ecu's with piggybacks such as Nistune, Dastek unichip, Greddy emanage, and generically chipped ecu's such as Mines, Blitz etc are all utilising the Ecu main board for monitoring (unless disabled manually) so all sensors should still work via the stock obd diagnostic port.

Bob - Thank you for the kind words! I will contact you in a few days when I have had chance to figure things out.

I will need to figure out where the real economies of scale are, i.e. 10, 20, 50+ units, vs price vs effort, vs bluetooth/USB/both etc.

Started building this about two years ago. Made/broke/fixed a few variants of the same with different switches, plugs, cables, usb, bluetooth etc.
Only finished one properly and tested it extensively for about 6 months, using various phones, tablets and verisions of windows. Driving to and from work everyday.

Thought i'd cracked it and so bought enough pieces to build 10 units, and then me and girlfriend bought our first house, so everything got put on hold. This was literally March last year, crazy how time flies!

Someone on facebook in January was asking is nissan diagnostics on android possible? To which many replied no it is not.

Well I had a light bulb moment - "oh yes I was going to make some of those boxes..."
Got all my bits out the loft a month ago and made 10. Sold them on Facebook to those I was speaking to at the time.

Sold the last one earlier today after writing about it properly. Also many have expressed great interest and so I will be making more. Just got to figure out realistically when/where/what/why/who, prices etc...

Many thanks!

Smile

11 Re: Nissan Diagnostics on Windows and Android on 8th March 2016, 10:27 pm

mreguest

avatar
@Ajay. wrote:1. Splmum usb+bt  ×1
2.. fpschris usb+bt  ×1
3. Buckym120  usb+bt ×1
4. Bob ....... usb+bt  (amount depending)
5. Johnny gtir usb+bt x1
6. Ajay usb+bt x1

Cheers lads!

1. Splmum = Gaz = Bought the last one today, I posted it this afternoon.

List is therefore:

2.. fpschris usb+bt ×1
3. Buckym120 usb+bt ×1
4. Bob ....... usb+bt (amount depending)
5. Johnny gtir usb+bt x1
6. Ajay usb+bt x1

Feel free to keep adding names to the list, ultimately it will help production times and prices etc.

The box is 80x50x25mm and it cannot be any smaller due to the size of parts inside.
The cable comes out one end where the red light is for bluetooth indicator and the selector switch, and the usb socket is in the other end.

Someone who bought one has wisely suggested the switch, usb and indicator light should all be in one end and the cable out of the other. Thus making it easier to mount under/over the steering column or elsewhere in the dash, and so could be perminant feature allowing usb and switch to be visable always. I will defo do this in the next batch.

The fuse box cover will not shut with this connected unless you dislodge the grey socket in the fuse box using a flat head screw driver. You can then tuck it away. So it would be possible to have it as a perminant fixture. It is possible to have android car stereos with flip out double din screens, and windows based 'carputers' etc, so the dash could look cool...

Feel free to make suggestions about the design and how people think they would use it...?

cheers!

Adam

12 Re: Nissan Diagnostics on Windows and Android on 9th March 2016, 8:09 am

Mr B

avatar
gtir technician
gtir technician
I think Bluetooth is the good thing with this cable of yours as a lot of people are on android so that gives them an option. Perhaps socket output for leds, switch & power line on/off could be a feature for people who want keep it in permanently. If you got an android based BT head unit it could be good. I remember ecutalk done an lcd display unit for dash mounting, nothing fancy by today's standard but may still be available.

13 Re: Nissan Diagnostics on Windows and Android on 9th March 2016, 3:42 pm

Indy


1. Splmum usb+bt ×1
2.. fpschris usb+bt ×1
3. Buckym120 usb+bt ×1
4. Bob ....... usb+bt (amount depending)
5. Johnny gtir usb+bt x1
6. Ajay usb+bt x1
7. Indy usb +btx1 payed

14 Re: Nissan Diagnostics on Windows and Android on 11th March 2016, 3:34 pm

r called jay


Really good work. This looks like a really handy bit of kit.

1. Splmum usb+bt  ×1
2. fpschris usb+bt  ×1
3. Buckym120  usb+bt ×1
4. Bob ....... usb+bt  (amount depending)
5. Johnny gtir usb+bt x1
6. Ajay usb+bt x1
7. Indy usb +btx1 payed
8. R called jay usb+bt x1

15 Re: Nissan Diagnostics on Windows and Android on 13th March 2016, 7:15 pm

Bones

avatar
the two star club
the two star club
@r called jay wrote:Really good work. This looks like a really handy bit of kit.

1. Splmum usb+bt  ×1
2. fpschris usb+bt  ×1
3. Buckym120  usb+bt ×1
4. Bob ....... usb+bt  (amount depending)
5. Johnny gtir usb+bt x1
6. Ajay usb+bt x1
7. Indy usb +btx1 payed
8. R called jay usb+bt x1
9 bones btx1

16 Re: Nissan Diagnostics on Windows and Android on 15th March 2016, 12:08 am

mreguest

avatar
1. fpschris usb+bt  ×1
2. Buckym120  usb+bt ×1
3. Bob ....... usb+bt  (amount depending)
4. Johnny gtir usb+bt x1
5. Ajay usb+bt x1
6. R called jay usb+bt x1
7. bones btx1

Splmum and Indy got one so I've taken them off the list.

Thanks for the interest everyone!

I've been figuring some stuff out and with a few tweaks in mind, and considering the interest so far I'm going to make 20 more units as a batch. This will allow me to sell them for:

USB & Bluetooth at £55 - delivered UK, £65 - delivered USA, AUS, NZ, CAN.

This will be 1st class signed for mainland UK, and international tracked/signed, paypal fees and packaging etc included... Other countries and UK non-mainland I'll have to look up as and when requested, I guess somewhere between £55 - £65 delivered.

Making another batch of 10 does not help much with price. A batch of 20 has some discount in parts to help keep my total costs down, and so selling at around £50ish is where I think the price can be and should be. A batch of 100 would only reduce another ~£2.50 per device so considering the huge outlay of money, slow sales etc it's not worth it...

I think once i'm in the swing of things the difference in time and material cost of doing only a USB or Bluetooth version will be minimal, I would suggest a reduction of about £7 to the prices described above to not include either usb or bluetooth option.

Note - once built that is it, the other interfaces cannot be added later in time. I seal all my circuits with resin and glue etc so that they can take reasonable drops, knocks, bangs, car vibrations etc 'for ever' I hope...

I have ordered 20 of everything. Some bits will take 2-3 weeks to arrive, I will start prepping some pieces but I won't be soldering for at least 3 weeks anyway as I have a broken thumb. I have a plastic tube/splint holding it together for 6 weeks, this is my third week...

I will provide by email instructions, software, drivers etc.  They are programmed consecutively with a unique name and as such I will test every box before sale. I will stand by my design and agree a 12 month warranty, and provided no signs of unreasonable abuse to the returned, I will provide a replacement.

Where possible/reasonable I will try and assist with operation, installation, etc. but please bare in mind I cannot take responsibility for unknown conflicts and corruptions caused by other FTDI usb devices previously installed on your computers... Unlikely to be a problem but possible. FTDI produce high quality geeky programming chips and stuff. See here:  http://www.ftdichip.com/FTProducts.htm

If suspicious tell me what usb stuff you have connected to your computer in the past and I might be able to advise. Normal keyboard, mouse, cameras, phones, printers etc should be fine. If you have an OBD2 usb scanner this could be a problem so make sure you have the installation CD it came with. We can talk separately about that.

Android/Bluetooth will just work easily.

Note, I have a completely unrelated day job 9am-6pm mon-fri. So whilst i'll try and respond in a timely manner it may take a few days. Luckily as more and more people use these boxes and share their experiences i'm sure we'll be able to help each other too.

A few people have struggled with windows drivers installation. Mainly because they've not turned their internet off before install. Windows online will wrongly pick this box up as a modern FTDI device and automatically install the latest drivers. They should work and be backwards compatible but they don't and I can't figure out why. The drivers I provide were originally made >10+ years ago. They seem to work fine from win98 right through to Windows 10.

I'll do another set of better videos in a few weeks time showing installation problems etc, I can probably do that with a broken thumb Smile

Cheers!

17 Re: Nissan Diagnostics on Windows and Android on 15th March 2016, 12:25 pm

toaster55

avatar
Stick me down for a Bluetooth usb one too.

18 Re: Nissan Diagnostics on Windows and Android on 17th March 2016, 2:17 pm

sven777


I'll have on too USB+BT (shipping to the Netherlands)

19 Re: Nissan Diagnostics on Windows and Android on 17th March 2016, 8:40 pm

GTI-R US

avatar
Management
Management
may as well get it delivered to ours Sven as your car will soon be ready for you to collect but will pm you either tonight or tomorrow sometime Smile


_________________
                                GTI-R-US.CO.UK
                                    Nissan Pulsar Gti-R Specialists
                                            'In association with'
                           Torque Of The South Motorsport
             Dyno Developments 4wd rolling road & Performance Tuning Centre
                                          'Services provided'
Wheelchair conversions, Forged engine rebuilds, Dyno power runs & Ecu mapping, Dyno diagnostics, Sonic injector cleaning, Performance upgrades,
Full Race setup's, Servicing, Mot's, Restorations, conversions, fabrication, Worlds largest stockist of quality used parts for Gtir
http://www.gti-r-us.co.uk www.force500.com

20 Re: Nissan Diagnostics on Windows and Android on 18th March 2016, 12:46 pm

sven777


@GTI-R US wrote:may as well get it delivered to ours Sven as your car will soon be ready for you to collect but will pm you either tonight or tomorrow sometime Smile

That could be an idea too! Anyway; looking forward to driving the car again! Probably not the same power as that 3071R dyno sheet that you put up on FB today; but will see. Anyway; if you could also make a small video from when mine goes on the dyno; that would be cool; something for the archives Very Happy

21 Re: Nissan Diagnostics on Windows and Android on 19th March 2016, 12:21 pm

GTI-R US

avatar
Management
Management
Yes will be mapping her this week Sven so will see what she can do safely without pushing her to its limit unless that's what you wish for. First time weve heard engine running since she's been with us and after fitting and setting up cams shes as sweet as so soon as other cars off the dyno yours will be going on there.
Yep il post video up of her and power she makes no problem!


sorry for hijacked


_________________
                                GTI-R-US.CO.UK
                                    Nissan Pulsar Gti-R Specialists
                                            'In association with'
                           Torque Of The South Motorsport
             Dyno Developments 4wd rolling road & Performance Tuning Centre
                                          'Services provided'
Wheelchair conversions, Forged engine rebuilds, Dyno power runs & Ecu mapping, Dyno diagnostics, Sonic injector cleaning, Performance upgrades,
Full Race setup's, Servicing, Mot's, Restorations, conversions, fabrication, Worlds largest stockist of quality used parts for Gtir
http://www.gti-r-us.co.uk www.force500.com

22 Re: Nissan Diagnostics on Windows and Android on 19th March 2016, 11:09 pm

sven777


Yeah, sorry for hijack! Anwyay; just send me a PM Bob whenever the time is there! Great that things are moving along! I love how you talk about my car in the female form Cool

Anyway; you can push to what you think makes sense, feel free to push it a little, but not to max out. No sense in going mental to get that last 20 HP out of it. Usable power is the main thing here.

23 Re: Nissan Diagnostics on Windows and Android on 22nd March 2016, 12:12 pm

FPSChris

avatar
I've had problems with Windows 10/USB3.
7 + USB 2 or XP (VM) both work fine.

Experience:
bmw dis/sss/NCS-Expert uber pro

https://soundcloud.com/fpschris

24 Re: Nissan Diagnostics on Windows and Android on 22nd March 2016, 1:53 pm

mreguest

avatar
@FPSChris wrote:I've had problems with Windows 10/USB3.
7 + USB 2 or XP (VM) both work fine.

Experience:
bmw dis/sss/NCS-Expert uber pro

Hello Chris,
Please can you expand on this a bit? Do you mean problems with the BMW/sss/ncs stuff you list, or one of my boxes?

When you say problems with win 10, what do you mean, problems with what exactly? I might be able to help...

The USB drivers I provide for my box should work with all versions of Windows. There may be slightly different ways of installing them but so far everyone I've helped has been successful. The only versions of Windows not tried yet are 2000server edition, vista and CE. I don't see why they wouldn't.

Cheers

PS - many parts have arrived, many more to come, thumb should be fixed this weekend and so will hopefully start building towards end of next week.

25 Re: Nissan Diagnostics on Windows and Android on 23rd March 2016, 4:27 pm

FPSChris

avatar
No no no, not your software! lol

The FTDI drivers really dislike usb3 and windows 10 across a multitude of different cables for vag, bmw & ford. Even the old ones offline install, ones on discs...
Sometimes it works fine on 10 using a usb2, but usb3 and windows 10 x64 has issues.
Copied all over to win7 (an actual copy & paste of the program folders which shouldn't work), worked perfectly fine, same as XP, even using the latest drivers from windows update it worked.

I can only guess that it's certain motherboard chipsets causing the problem.

I'm unfortunate enough to have a brand new chipset with only usb3.1/windows 10 x64 and the cables I use on my win7 machine don't work no matter what I do to set them up. Even in a vm.

I'm more than happy giving it a thourough test on all my computers and VM's though Smile
If it works on my new laptop then it should work on everything.

https://soundcloud.com/fpschris

Sponsored content


View previous topic View next topic Back to top  Message [Page 1 of 3]

Go to page : 1, 2, 3  Next

Permissions in this forum:
You cannot reply to topics in this forum
