Gtir Motorsport club » Tech room » frequently asked Qs / how to guide » diagrams

diagrams

Go down  Message [Page 1 of 1]

1diagrams Empty diagrams on 3rd January 2013, 5:43 pm

nomad

nomad
Admin
Admin

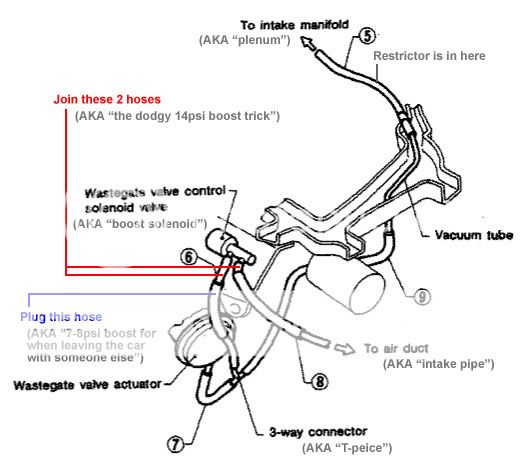

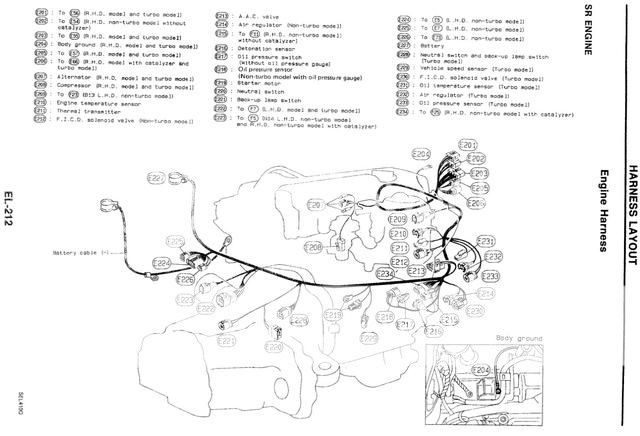

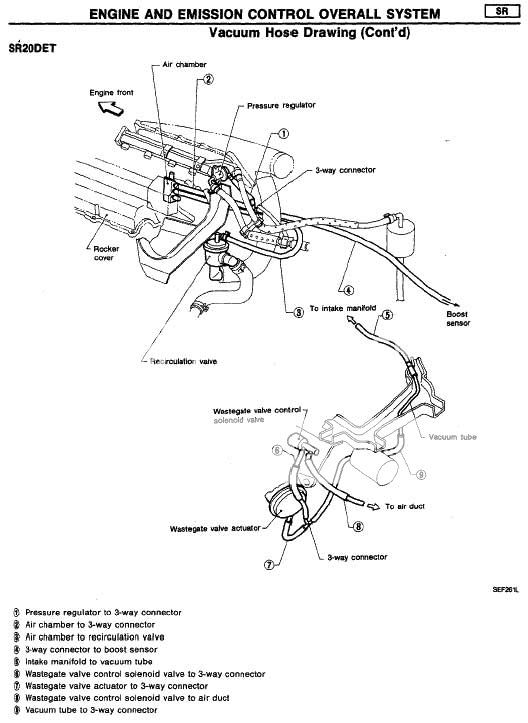

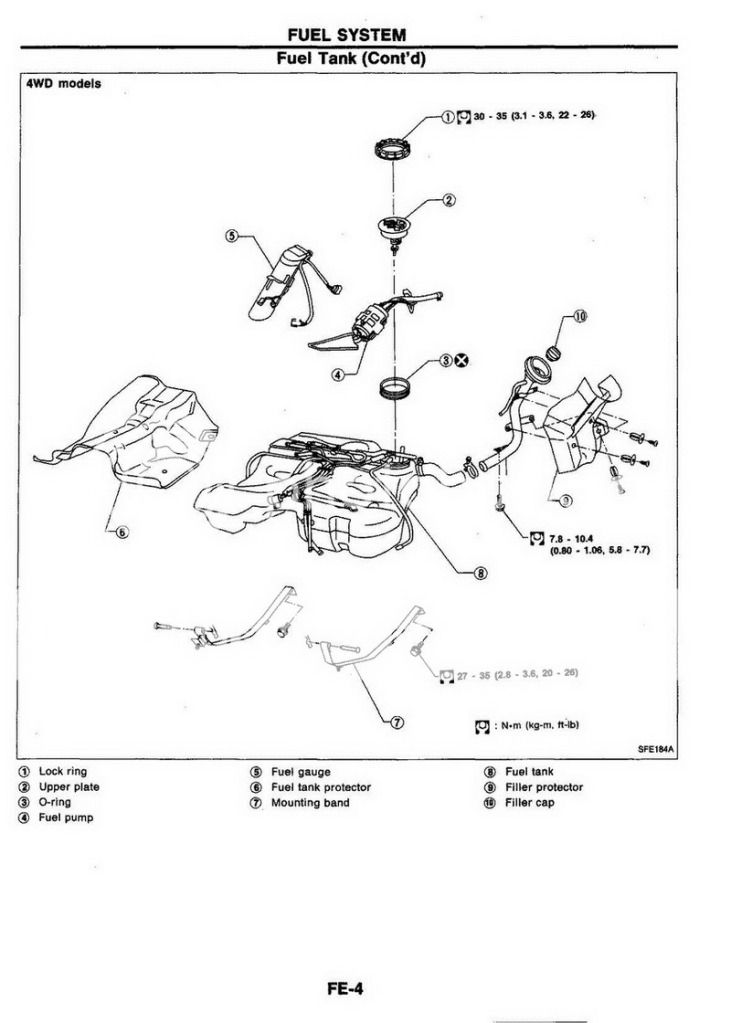

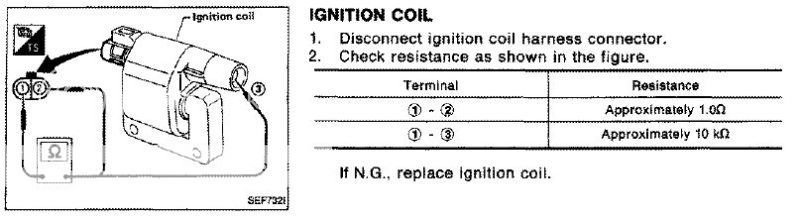

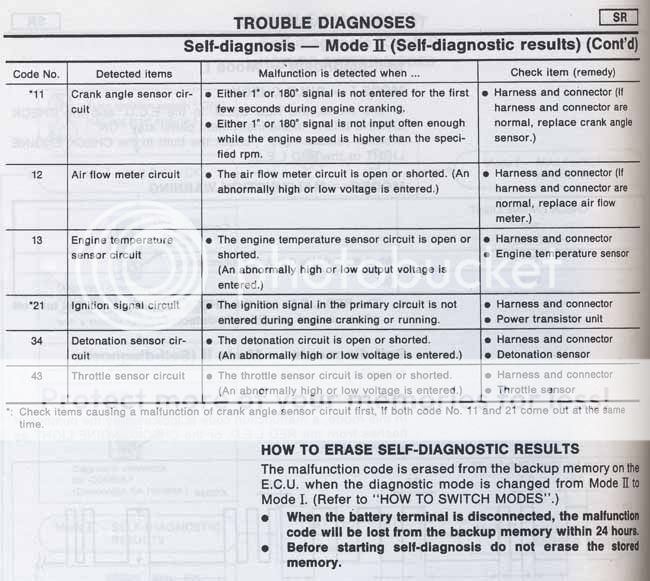

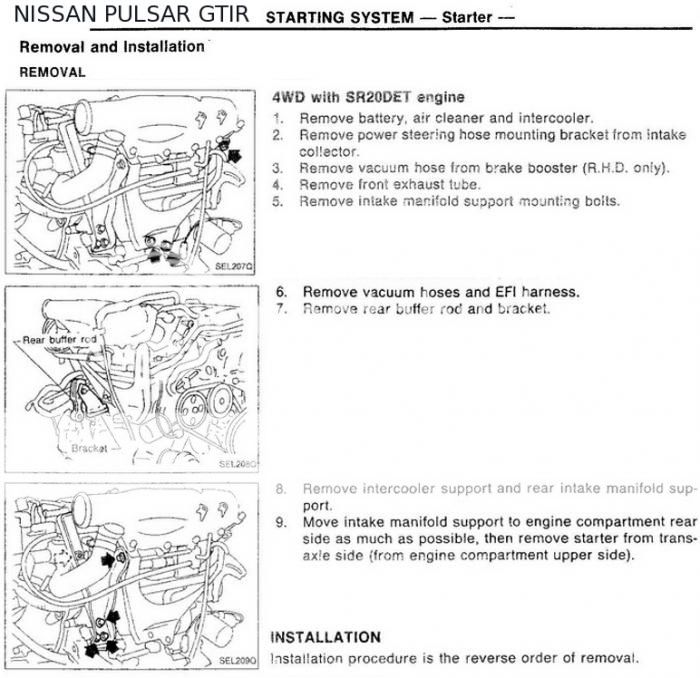

diagrams Manual_1204 diagrams Coiltest1 diagrams Attachment diagrams Vacuum-piping diagrams R_boost_controls diagrams Engine-harness_jpg diagrams Z32_MAF_Wiringsized1 diagrams Faultcheck diagrams Gtir_starter_removal

2diagrams Empty Re: diagrams on 23rd March 2013, 10:03 pm

nomad

nomad
Admin
Admin
diagrams _sr20det_idle_screw_no_holey_hose__locationB

3diagrams Empty Re: diagrams on 15th July 2013, 8:00 pm

nomad

nomad
Admin
Admin
diagrams 5F2B205E-2CDD-4559-9412-43321E0AA68A-17322-000004850B66A98E fuel lines are 8mm

4diagrams Empty Re: diagrams on 8th October 2014, 9:26 pm

nomad

nomad
Admin
Admin
diagrams 2014-10-08-22-09-51


_________________
"Official post whore" and all round superhero....

5diagrams Empty Re: diagrams on 18th June 2017, 8:14 am

gtir_woody

gtir_woody
moderator
moderator
When I installed my digital dash I found it difficult not knowing the wire colours, so Ive labeled the inputs I used.

Hope its useful for someone.

diagrams 2017-06-18_181006
